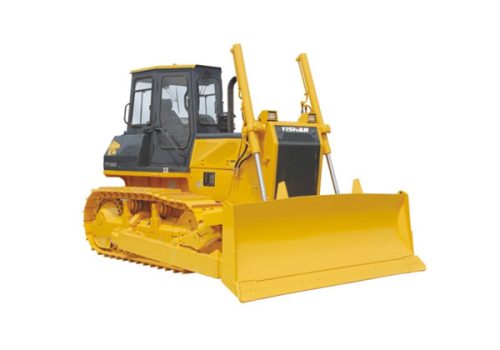

TY160G
Crawler bulldozer
The whole machine introduction:
In order to build a mountain-moving boutique and ensure technology leadership, the company has comprehensively upgraded existing products and developed the Shishanhu series of bulldozers. The series of bulldozers has six patented technologies, such as floating support and automatic idle speed series. The “dry tiger” means the power of the dry-land bulldozers during the dry operation of the dry land – Wuthering Mountain Forest. The transmission system continues the high reliability of the Shisan 160 series. Appearance is specially designed from modeling to painting and decaling; the interior of the cab is sealed, optional with new air booster and negative ion generator, low noise and dustproof; stall protection, automatic idle speed, electronically controlled throttle The control system has the characteristics of energy saving and environmental protection and can prevent the hydraulic system from abnormally heating up; the side door adopts the overall opening design, and the maintenance is convenient; the cylinder moves forward, the hydraulic system efficiency is improved, and the operating system adopts the left hand centralized operation.
Performance
| Model | TY160G |
| Engine Model | WD10G178E25 |
| Power Rating[kw/r/min] | 131/1850 |
| Fuel consumption rate[g/kw·h(g/ps·h)] | ≤215 |
| Maximum torque [N·m/r/min] | 830/1150 |
| Bulldozer form | Straight tilting shovel |
| Use mass(kg) | 16900 |
| Minimum turning radius(m) | 3.1 |
| Climbing capacity(degree) | 30° |
| Forward speed(km/h) | 3.8/6.6/10.6 |
| Backward speed (km/h) | 4.9/8.5/13.6 |
| Track center distance(mm) | 1880 |
| Track ground length(mm) | 2430 |
| Track plate width (standard) (mm) | 510 |
| Grounding pressure (kpa) | 66 |
| Minimum ground clearance (to lower cowling) (mm) | 400 |
| Overall machine dimensions L×W×H (mm) | 5025×3416×3190 |
| Shovel shape size L×W(mm) | 3416×1149 |
| Cutting angle of bulldozer blade (゜) | 55 |
| Max. lifting height of shovel(mm)(from the ground) | 1095 |
| Maximum cutting depth of shovel blade(mm)(from the ground) | 545 |
| Maximum tilt of shovel blade (mm) (from the ground) | 860 |
| Track plate (number of one side) (section) | 37 |
| System pressure (Mpa) | 13.7 |
